xf_vfs.c 文件参考

#include "xf_vfs.h"
#include "xf_vfs_private.h"

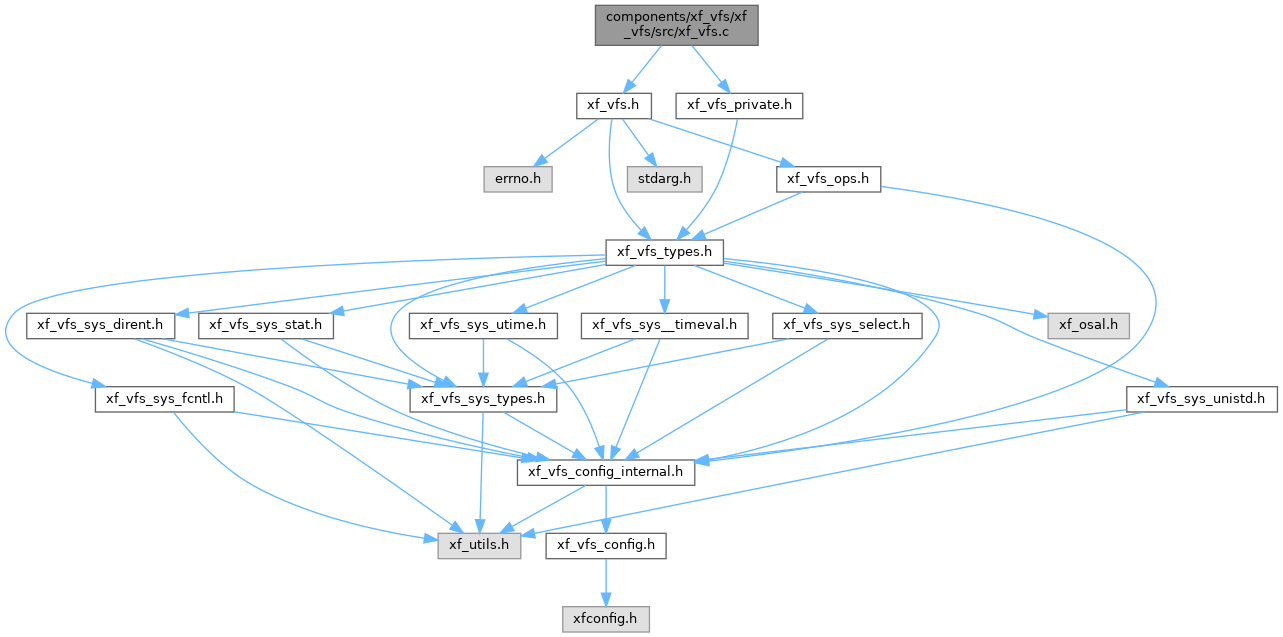

xf_vfs.c 的引用(Include)关系图:

浏览源代码.

结构体
struct	fd_table_t
struct	fds_triple_t
struct	vfs_component_proxy_t

宏定义
#define	FD_TABLE_ENTRY_UNUSED   (fd_table_t) { .permanent = false, .has_pending_close = false, .has_pending_select = false, .vfs_index = -1, .local_fd = -1 }
#define	STATIC_ASSERT(EXPR, ...)   extern char (*_do_assert(void)) [sizeof(char[1 - 2*!(EXPR)])]
#define	_lock_acquire(lock)   xf_lock_lock(lock)
#define	_lock_release(lock)   xf_lock_unlock(lock)
#define	xf_strncpy(dst, src, len)   strncpy((dst), (src), (len))
#define	_LOCAL_FD_T_   uint8_t
#define	CHECK_AND_CALL(ret, r, pvfs, func, ...)
#define	CHECK_AND_CALL_SUBCOMPONENT(ret, r, pvfs, component, func, ...)
#define	CHECK_AND_CALLV(r, pvfs, func, ...)
#define	CHECK_AND_CALL_SUBCOMPONENTV(r, pvfs, component, func, ...)
#define	CHECK_AND_CALLP(ret, r, pvfs, func, ...)
#define	CHECK_AND_CALL_SUBCOMPONENTP(ret, r, pvfs, component, func, ...)
#define	CHECK_VFS_READONLY_FLAG(flags)

类型定义
typedef _LOCAL_FD_T_	local_fd_t
typedef int8_t	vfs_index_t

函数
	STATIC_ASSERT ((1<<(sizeof(local_fd_t) *8)) >=XF_VFS_FDS_MAX, "file descriptor type too small")
	STATIC_ASSERT ((1<<(sizeof(vfs_index_t) *8)) >=XF_VFS_MAX_COUNT, "VFS index type too small")
	STATIC_ASSERT (((vfs_index_t) -1)< 0, "vfs_index_t must be a signed type")
static xf_vfs_ssize_t	xf_get_free_index (void)
static void	xf_vfs_free_fs_ops (xf_vfs_fs_ops_t *vfs)
static void	xf_vfs_free_entry (xf_vfs_entry_t *entry)
static xf_vfs_fs_ops_t *	xf_minify_vfs (const xf_vfs_t *const vfs, vfs_component_proxy_t proxy)
static void	free_proxy_members (vfs_component_proxy_t *proxy)
static xf_vfs_fs_ops_t *	xf_vfs_duplicate_fs_ops (const xf_vfs_fs_ops_t *orig)
static xf_err_t	xf_vfs_make_fs_ops (const xf_vfs_t *vfs, xf_vfs_fs_ops_t **min)
static xf_err_t	xf_vfs_register_fs_common (const char *base_path, size_t len, const xf_vfs_fs_ops_t *vfs, int flags, void *ctx, int *vfs_index)
static bool	fd_valid (int fd)
static const xf_vfs_entry_t *	get_vfs_for_fd (int fd)
static int	get_local_fd (const xf_vfs_entry_t *vfs, int fd)
static const char *	translate_path (const xf_vfs_entry_t *vfs, const char *src_path)
xf_err_t	xf_vfs_register_fs (const char *base_path, const xf_vfs_fs_ops_t *vfs, int flags, void *ctx)
xf_err_t	xf_vfs_register_common (const char *base_path, size_t len, const xf_vfs_t *vfs, void *ctx, int *vfs_index)
xf_err_t	xf_vfs_register (const char *base_path, const xf_vfs_t *vfs, void *ctx)
xf_err_t	xf_vfs_register_fd_range (const xf_vfs_t *vfs, void *ctx, int min_fd, int max_fd)
xf_err_t	xf_vfs_register_fs_with_id (const xf_vfs_fs_ops_t *vfs, int flags, void *ctx, xf_vfs_id_t *vfs_id)
xf_err_t	xf_vfs_register_with_id (const xf_vfs_t *vfs, void *ctx, xf_vfs_id_t *vfs_id)
xf_err_t	xf_vfs_unregister_with_id (xf_vfs_id_t vfs_id)
xf_err_t	xf_vfs_unregister_fs_with_id (xf_vfs_id_t vfs_id)
xf_err_t	xf_vfs_unregister (const char *base_path)
xf_err_t	xf_vfs_unregister_fs (const char *base_path)
xf_err_t	xf_vfs_register_fd (xf_vfs_id_t vfs_id, int *fd)
xf_err_t	xf_vfs_register_fd_with_local_fd (xf_vfs_id_t vfs_id, int local_fd, bool permanent, int *fd)
xf_err_t	xf_vfs_unregister_fd (xf_vfs_id_t vfs_id, int fd)
void	xf_vfs_dump_fds (void)
	Dump the existing VFS FDs data to FILE* fp
void	xf_vfs_dump_registered_paths (void)
	Dump all registered FSs to the provided FILE*
xf_err_t	xf_vfs_set_readonly_flag (const char *base_path)
const xf_vfs_entry_t *	xf_vfs_get_vfs_for_index (int index)
const xf_vfs_entry_t *	xf_vfs_get_vfs_for_path (const char *path)
int	xf_vfs_open (const char *path, int flags, int mode)
xf_vfs_ssize_t	xf_vfs_write (int fd, const void *data, size_t size)
xf_vfs_off_t	xf_vfs_lseek (int fd, xf_vfs_off_t size, int mode)
xf_vfs_ssize_t	xf_vfs_read (int fd, void *dst, size_t size)
xf_vfs_ssize_t	xf_vfs_pread (int fd, void *dst, size_t size, xf_vfs_off_t offset)
	Implements the VFS layer of POSIX pread()
xf_vfs_ssize_t	xf_vfs_pwrite (int fd, const void *src, size_t size, xf_vfs_off_t offset)
	Implements the VFS layer of POSIX pwrite()
int	xf_vfs_close (int fd)
int	xf_vfs_fstat (int fd, xf_vfs_stat_t *st)
int	xf_vfs_fcntl_r (int fd, int cmd, int arg)
int	xf_vfs_ioctl (int fd, int cmd,...)
int	xf_vfs_fsync (int fd)
int	xf_vfs_stat (const char *path, xf_vfs_stat_t *st)
int	xf_vfs_utime (const char *path, const xf_vfs_utimbuf_t *times)
int	xf_vfs_link (const char *n1, const char *n2)
int	xf_vfs_unlink (const char *path)
int	xf_vfs_rename (const char *src, const char *dst)
xf_vfs_dir_t *	xf_vfs_opendir (const char *name)
xf_vfs_dirent_t *	xf_vfs_readdir (xf_vfs_dir_t *pdir)
int	xf_vfs_readdir_r (xf_vfs_dir_t *pdir, xf_vfs_dirent_t *entry, xf_vfs_dirent_t **out_dirent)
long	xf_vfs_telldir (xf_vfs_dir_t *pdir)
void	xf_vfs_seekdir (xf_vfs_dir_t *pdir, long loc)
void	xf_vfs_rewinddir (xf_vfs_dir_t *pdir)
int	xf_vfs_closedir (xf_vfs_dir_t *pdir)
int	xf_vfs_mkdir (const char *name, xf_vfs_mode_t mode)
int	xf_vfs_rmdir (const char *name)
int	xf_vfs_access (const char *path, int amode)
int	xf_vfs_truncate (const char *path, xf_vfs_off_t length)
int	xf_vfs_ftruncate (int fd, xf_vfs_off_t length)
static void	call_end_selects (int end_index, const fds_triple_t *vfs_fds_triple, void **driver_args)
static bool	xf_vfs_safe_fd_isset (int fd, const xf_fd_set *fds)
static int	set_global_fd_sets (const fds_triple_t *vfs_fds_triple, int size, xf_fd_set *readfds, xf_fd_set *writefds, xf_fd_set *errorfds)
static void	xf_vfs_log_fd_set (const char *fds_name, const xf_fd_set *fds)
int	xf_vfs_select (int nfds, xf_fd_set *readfds, xf_fd_set *writefds, xf_fd_set *errorfds, xf_vfs_timeval_t *timeout)
	Synchronous I/O multiplexing which implements the functionality of POSIX select() for VFS
void	xf_vfs_select_triggered (xf_vfs_select_sem_t sem)
	Notification from a VFS driver about a read/write/error condition
void	xf_vfs_select_triggered_isr (xf_vfs_select_sem_t sem, int *woken)
	Notification from a VFS driver about a read/write/error condition (ISR version)

变量
static const char *const	TAG = "xf_vfs"
static xf_vfs_entry_t *	s_vfs [XF_VFS_MAX_COUNT] = { 0 }
static size_t	s_vfs_count = 0
static fd_table_t	s_fd_table [XF_VFS_FDS_MAX] = { [0 ... XF_VFS_FDS_MAX - 1] = FD_TABLE_ENTRY_UNUSED }
static xf_lock_t	s_fd_table_lock

详细描述

作者

catcatBlue (catca.nosp@m.tblu.nosp@m.e@qq..nosp@m.com)

版本

1.0

日期

2025-01-13

在文件 xf_vfs.c 中定义.

宏定义说明

FD_TABLE_ENTRY_UNUSED

#define FD_TABLE_ENTRY_UNUSED   (fd_table_t) { .permanent = false, .has_pending_close = false, .has_pending_select = false, .vfs_index = -1, .local_fd = -1 }

Copyright (c) 2024, CorAL. This file has been modified by CorAL under the terms of the Apache License, Version 2.0.

Modifications:

• Modified by CorAL on 2025-01-10:
  1. modified the naming to prevent conflict with the original project.
  2. Remove posix docking, compatible with other platforms.
  3. removed esp-idf related dependencies.
  4. trimmed termios and other functions.

在文件 xf_vfs.c 第 34 行定义.

STATIC_ASSERT

#define STATIC_ASSERT	(		EXPR,
			...
	)		extern char (*_do_assert(void)) [sizeof(char[1 - 2*!(EXPR)])]

在文件 xf_vfs.c 第 37 行定义.

_lock_acquire

#define _lock_acquire

(

lock

)

xf_lock_lock(lock)

在文件 xf_vfs.c 第 40 行定义.

_lock_release

#define _lock_release

(

lock

)

xf_lock_unlock(lock)

在文件 xf_vfs.c 第 41 行定义.

xf_strncpy

#define xf_strncpy	(		dst,
			src,
			len
	)		strncpy((dst), (src), (len))

在文件 xf_vfs.c 第 44 行定义.

_LOCAL_FD_T_

#define _LOCAL_FD_T_   uint8_t

在文件 xf_vfs.c 第 50 行定义.

CHECK_AND_CALL

#define CHECK_AND_CALL	(		ret,
			r,
			pvfs,
			func,
			...
	)

值:

    if (pvfs->vfs->func == NULL) { \
        errno = ENOSYS; \
        return -1; \
    } \
    if (pvfs->flags & XF_VFS_FLAG_CONTEXT_PTR) { \
        ret = (*pvfs->vfs->func ## _p)(pvfs->ctx, __VA_ARGS__); \
    } else { \
        ret = (*pvfs->vfs->func)(__VA_ARGS__); \
    }

在文件 xf_vfs.c 第 466 行定义.

CHECK_AND_CALL_SUBCOMPONENT

#define CHECK_AND_CALL_SUBCOMPONENT	(		ret,
			r,
			pvfs,
			component,
			func,
			...
	)

值:

    if (pvfs->vfs->component == NULL || pvfs->vfs->component->func == NULL) { \
        errno = ENOSYS; \
        return -1; \
    } \
    if (pvfs->flags & XF_VFS_FLAG_CONTEXT_PTR) { \
        ret = (*pvfs->vfs->component->func ## _p)(pvfs->ctx, __VA_ARGS__); \
    } else { \
        ret = (*pvfs->vfs->component->func)(__VA_ARGS__); \
    }

在文件 xf_vfs.c 第 477 行定义.

CHECK_AND_CALLV

#define CHECK_AND_CALLV	(		r,
			pvfs,
			func,
			...
	)

值:

    if (pvfs->vfs->func == NULL) { \
        errno = ENOSYS; \
        return; \
    } \
    if (pvfs->flags & XF_VFS_FLAG_CONTEXT_PTR) { \
        (*pvfs->vfs->func ## _p)(pvfs->ctx, __VA_ARGS__); \
    } else { \
        (*pvfs->vfs->func)(__VA_ARGS__); \
    }

在文件 xf_vfs.c 第 488 行定义.

CHECK_AND_CALL_SUBCOMPONENTV

#define CHECK_AND_CALL_SUBCOMPONENTV	(		r,
			pvfs,
			component,
			func,
			...
	)

值:

    if (pvfs->vfs->component == NULL || pvfs->vfs->component->func == NULL) { \
        errno = ENOSYS; \
        return; \
    } \
    if (pvfs->flags & XF_VFS_FLAG_CONTEXT_PTR) { \
        (*pvfs->vfs->component->func ## _p)(pvfs->ctx, __VA_ARGS__); \
    } else { \
        (*pvfs->vfs->component->func)(__VA_ARGS__); \
    }

在文件 xf_vfs.c 第 499 行定义.

CHECK_AND_CALLP

#define CHECK_AND_CALLP	(		ret,
			r,
			pvfs,
			func,
			...
	)

值:

    if (pvfs->vfs->func == NULL) { \
        errno = ENOSYS; \
        return NULL; \
    } \
    if (pvfs->flags & XF_VFS_FLAG_CONTEXT_PTR) { \
        ret = (*pvfs->vfs->func ## _p)(pvfs->ctx, __VA_ARGS__); \
    } else { \
        ret = (*pvfs->vfs->func)(__VA_ARGS__); \
    }

在文件 xf_vfs.c 第 510 行定义.

CHECK_AND_CALL_SUBCOMPONENTP

#define CHECK_AND_CALL_SUBCOMPONENTP	(		ret,
			r,
			pvfs,
			component,
			func,
			...
	)

值:

    if (pvfs->vfs->component == NULL || pvfs->vfs->component->func == NULL) { \
        errno = ENOSYS; \
        return NULL; \
    } \
    if (pvfs->flags & XF_VFS_FLAG_CONTEXT_PTR) { \
        ret = (*pvfs->vfs->component->func ## _p)(pvfs->ctx, __VA_ARGS__); \
    } else { \
        ret = (*pvfs->vfs->component->func)(__VA_ARGS__); \
    }

在文件 xf_vfs.c 第 521 行定义.

CHECK_VFS_READONLY_FLAG

#define CHECK_VFS_READONLY_FLAG

(

flags

)

值:

    if (flags & XF_VFS_FLAG_READONLY_FS) { \
        errno = EROFS; \
        return -1; \
    }

在文件 xf_vfs.c 第 532 行定义.

类型定义说明

local_fd_t

typedef _LOCAL_FD_T_ local_fd_t

在文件 xf_vfs.c 第 55 行定义.

vfs_index_t

typedef int8_t vfs_index_t

在文件 xf_vfs.c 第 58 行定义.

函数说明

STATIC_ASSERT() [1/3]

STATIC_ASSERT	(	(1<<(sizeof(local_fd_t) *8)) >=	XF_VFS_FDS_MAX,
		"file descriptor type too small"
	)

STATIC_ASSERT() [2/3]

STATIC_ASSERT	(	(1<<(sizeof(vfs_index_t) *8)) >=	XF_VFS_MAX_COUNT,
		"VFS index type too small"
	)

STATIC_ASSERT() [3/3]

STATIC_ASSERT

(

)

xf_get_free_index()

static xf_vfs_ssize_t xf_get_free_index ( void  )

static

在文件 xf_vfs.c 第 1323 行定义.

xf_vfs_free_fs_ops()

static void xf_vfs_free_fs_ops ( xf_vfs_fs_ops_t *  vfs )

static

在文件 xf_vfs.c 第 1333 行定义.

xf_vfs_free_entry()

static void xf_vfs_free_entry ( xf_vfs_entry_t *  entry )

static

在文件 xf_vfs.c 第 1348 行定义.

xf_minify_vfs()

static xf_vfs_fs_ops_t * xf_minify_vfs ( const xf_vfs_t *const  vfs, vfs_component_proxy_t  proxy  )

static

在文件 xf_vfs.c 第 1361 行定义.

free_proxy_members()

static void free_proxy_members ( vfs_component_proxy_t *  proxy )

static

在文件 xf_vfs.c 第 1437 行定义.

xf_vfs_duplicate_fs_ops()

static xf_vfs_fs_ops_t * xf_vfs_duplicate_fs_ops ( const xf_vfs_fs_ops_t *  orig )

static

在文件 xf_vfs.c 第 1447 行定义.

xf_vfs_make_fs_ops()

static xf_err_t xf_vfs_make_fs_ops ( const xf_vfs_t *  vfs, xf_vfs_fs_ops_t **  min  )

static

在文件 xf_vfs.c 第 1506 行定义.

xf_vfs_register_fs_common()

static xf_err_t xf_vfs_register_fs_common ( const char *  base_path, size_t  len, const xf_vfs_fs_ops_t *  vfs, int  flags, void *  ctx, int *  vfs_index  )

static

在文件 xf_vfs.c 第 1578 行定义.

fd_valid()

static bool fd_valid ( int  fd )

inlinestatic

在文件 xf_vfs.c 第 1634 行定义.

get_vfs_for_fd()

static const xf_vfs_entry_t * get_vfs_for_fd ( int  fd )

static

在文件 xf_vfs.c 第 1639 行定义.

get_local_fd()

static int get_local_fd ( const xf_vfs_entry_t *  vfs, int  fd  )

inlinestatic

在文件 xf_vfs.c 第 1649 行定义.

translate_path()

static const char * translate_path ( const xf_vfs_entry_t *  vfs, const char *  src_path  )

static

在文件 xf_vfs.c 第 1660 行定义.

xf_vfs_register_common()

xf_err_t xf_vfs_register_common	(	const char *	base_path,
		size_t	len,
		const xf_vfs_t *	vfs,
		void *	ctx,
		int *	vfs_index
	)

Register a virtual filesystem.

参数

base_path	file path prefix associated with the filesystem. Must be a zero-terminated C string, may be empty. If not empty, must be up to XF_VFS_PATH_MAX characters long, and at least 2 characters long. Name must start with a "/" and must not end with "/". For example, "/data" or "/dev/spi" are valid. These VFSes would then be called to handle file paths such as "/data/myfile.txt" or "/dev/spi/0". In the special case of an empty base_path, a "fallback" VFS is registered. Such VFS will handle paths which are not matched by any other registered VFS.
len	Length of the base_path.
vfs	Pointer to xf_vfs_t, a structure which maps syscalls to the filesystem driver functions. VFS component doesn't assume ownership of this pointer.
ctx	If vfs->flags has XF_VFS_FLAG_CONTEXT_PTR set, a pointer which should be passed to VFS functions. Otherwise, NULL.
vfs_index	Index for getting the vfs content.

返回

XF_OK if successful. XF_ERR_NO_MEM if too many VFSes are registered. XF_ERR_INVALID_ARG if given an invalid parameter.

在文件 xf_vfs.c 第 146 行定义.

xf_vfs_set_readonly_flag()

xf_err_t xf_vfs_set_readonly_flag

(

const char *

base_path

)

在文件 xf_vfs.c 第 388 行定义.

xf_vfs_get_vfs_for_index()

const xf_vfs_entry_t * xf_vfs_get_vfs_for_index

(

int

index

)

Get vfs fd with given vfs index.

参数

index

VFS index.

返回

Pointer to the xf_vfs_entry_t corresponding to the given path, which cannot be NULL.

在文件 xf_vfs.c 第 405 行定义.

xf_vfs_get_vfs_for_path()

const xf_vfs_entry_t * xf_vfs_get_vfs_for_path

(

const char *

path

)

Get vfs fd with given path.

参数

path	file path prefix associated with the filesystem.

返回

Pointer to the xf_vfs_entry_t corresponding to the given path, which cannot be NULL.

在文件 xf_vfs.c 第 414 行定义.

call_end_selects()

static void call_end_selects ( int  end_index, const fds_triple_t *  vfs_fds_triple, void **  driver_args  )

static

在文件 xf_vfs.c 第 971 行定义.

xf_vfs_safe_fd_isset()

static bool xf_vfs_safe_fd_isset ( int  fd, const xf_fd_set *  fds  )

inlinestatic

在文件 xf_vfs.c 第 989 行定义.

set_global_fd_sets()

static int set_global_fd_sets ( const fds_triple_t *  vfs_fds_triple, int  size, xf_fd_set *  readfds, xf_fd_set *  writefds, xf_fd_set *  errorfds  )

static

在文件 xf_vfs.c 第 994 行定义.

xf_vfs_log_fd_set()

static void xf_vfs_log_fd_set ( const char *  fds_name, const xf_fd_set *  fds  )

static

在文件 xf_vfs.c 第 1028 行定义.

变量说明

TAG

const char* const TAG = "xf_vfs"

static

在文件 xf_vfs.c 第 105 行定义.

s_vfs

xf_vfs_entry_t* s_vfs[XF_VFS_MAX_COUNT] = { 0 }

static

在文件 xf_vfs.c 第 107 行定义.

s_vfs_count

size_t s_vfs_count = 0

static

在文件 xf_vfs.c 第 108 行定义.

s_fd_table

fd_table_t s_fd_table[XF_VFS_FDS_MAX] = { [0 ... XF_VFS_FDS_MAX - 1] = FD_TABLE_ENTRY_UNUSED }

static

在文件 xf_vfs.c 第 110 行定义.

s_fd_table_lock

xf_lock_t s_fd_table_lock

static

在文件 xf_vfs.c 第 111 行定义.
