xf_vfs_t结构体 参考

VFS definition structure 更多...

#include <xf_vfs_types.h>

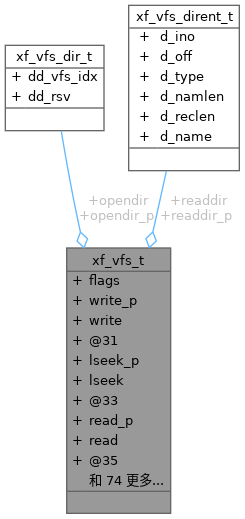

xf_vfs_t 的协作图:

成员变量
int	flags
union {
xf_vfs_ssize_t(*   write_p )(void *p, int fd, const void       *data, size_t size)
xf_vfs_ssize_t(*   write )(int fd, const void *data,        size_t size)
};
union {
xf_vfs_off_t(*   lseek_p )(void *p, int fd,        xf_vfs_off_t size, int mode)
xf_vfs_off_t(*   lseek )(int fd, xf_vfs_off_t size,        int mode)
};
union {
xf_vfs_ssize_t(*   read_p )(void *ctx, int fd, void *dst,        size_t size)
xf_vfs_ssize_t(*   read )(int fd, void *dst, size_t size)
};
union {
xf_vfs_ssize_t(*   pread_p )(void *ctx, int fd, void *dst,        size_t size, xf_vfs_off_t       offset)
xf_vfs_ssize_t(*   pread )(int fd, void *dst, size_t       size, xf_vfs_off_t offset)
};
union {
xf_vfs_ssize_t(*   pwrite_p )(void *ctx, int fd, const       void *src, size_t size,        xf_vfs_off_t offset)
xf_vfs_ssize_t(*   pwrite )(int fd, const void *src,        size_t size, xf_vfs_off_t       offset)
};
union {
int(*   open_p )(void *ctx, const char *path,        int flags, int mode)
int(*   open )(const char *path, int flags,        int mode)
};
union {
int(*   close_p )(void *ctx, int fd)
int(*   close )(int fd)
};
union {
int(*   fstat_p )(void *ctx, int fd,        xf_vfs_stat_t *st)
int(*   fstat )(int fd, xf_vfs_stat_t *st)
};
union {
int(*   stat_p )(void *ctx, const char *path,        xf_vfs_stat_t *st)
int(*   stat )(const char *path,        xf_vfs_stat_t *st)
};
union {
int(*   link_p )(void *ctx, const char *n1,        const char *n2)
int(*   link )(const char *n1, const char *n2)
};
union {
int(*   unlink_p )(void *ctx, const char *path)
int(*   unlink )(const char *path)
};
union {
int(*   rename_p )(void *ctx, const char *src,        const char *dst)
int(*   rename )(const char *src, const char *dst)
};
union {
xf_vfs_dir_t *(*   opendir_p )(void *ctx, const char *name)
xf_vfs_dir_t *(*   opendir )(const char *name)
};
union {
xf_vfs_dirent_t *(*   readdir_p )(void *ctx, xf_vfs_dir_t *pdir)
xf_vfs_dirent_t *(*   readdir )(xf_vfs_dir_t *pdir)
};
union {
int(*   readdir_r_p )(void *ctx, xf_vfs_dir_t       *pdir, xf_vfs_dirent_t *entry,        xf_vfs_dirent_t **out_dirent)
int(*   readdir_r )(xf_vfs_dir_t *pdir,        xf_vfs_dirent_t *entry,        xf_vfs_dirent_t **out_dirent)
};
union {
long(*   telldir_p )(void *ctx, xf_vfs_dir_t *pdir)
long(*   telldir )(xf_vfs_dir_t *pdir)
};
union {
void(*   seekdir_p )(void *ctx, xf_vfs_dir_t       *pdir, long offset)
void(*   seekdir )(xf_vfs_dir_t *pdir, long offset)
};
union {
int(*   closedir_p )(void *ctx, xf_vfs_dir_t *pdir)
int(*   closedir )(xf_vfs_dir_t *pdir)
};
union {
int(*   mkdir_p )(void *ctx, const char *name,        xf_vfs_mode_t mode)
int(*   mkdir )(const char *name,        xf_vfs_mode_t mode)
};
union {
int(*   rmdir_p )(void *ctx, const char *name)
int(*   rmdir )(const char *name)
};
union {
int(*   fcntl_p )(void *ctx, int fd, int cmd,        int arg)
int(*   fcntl )(int fd, int cmd, int arg)
};
union {
int(*   ioctl_p )(void *ctx, int fd, int cmd,        va_list args)
int(*   ioctl )(int fd, int cmd, va_list args)
};
union {
int(*   fsync_p )(void *ctx, int fd)
int(*   fsync )(int fd)
};
union {
int(*   access_p )(void *ctx, const char *path,        int amode)
int(*   access )(const char *path, int amode)
};
union {
int(*   truncate_p )(void *ctx, const char *path,        xf_vfs_off_t length)
int(*   truncate )(const char *path,        xf_vfs_off_t length)
};
union {
int(*   ftruncate_p )(void *ctx, int fd,        xf_vfs_off_t length)
int(*   ftruncate )(int fd, xf_vfs_off_t length)
};
union {
int(*   utime_p )(void *ctx, const char *path,        const xf_vfs_utimbuf_t *times)
int(*   utime )(const char *path, const       xf_vfs_utimbuf_t *times)
};
xf_err_t(*	start_select )(int nfds, xf_fd_set *readfds, xf_fd_set *writefds, xf_fd_set *exceptfds, xf_vfs_select_sem_t sem, void **end_select_args)
int(*	socket_select )(int nfds, xf_fd_set *readfds, xf_fd_set *writefds, xf_fd_set *errorfds, xf_vfs_timeval_t *timeout)
void(*	stop_socket_select )(void *sem)
void(*	stop_socket_select_isr )(void *sem, int *woken)
void *(*	get_socket_select_semaphore )(void)
xf_err_t(*	end_select )(void *end_select_args)

详细描述

VFS definition structure

This structure should be filled with pointers to corresponding FS driver functions.

VFS component will translate all FDs so that the filesystem implementation sees them starting at zero. The caller sees a global FD which is prefixed with an pre-filesystem-implementation.

Some FS implementations expect some state (e.g. pointer to some structure) to be passed in as a first argument. For these implementations, populate the members of this structure which have _p suffix, set flags member to XF_VFS_FLAG_CONTEXT_PTR and provide the context pointer to xf_vfs_register function. If the implementation doesn't use this extra argument, populate the members without _p suffix and set flags member to XF_VFS_FLAG_DEFAULT.

If the FS driver doesn't provide some of the functions, set corresponding members to NULL.

在文件 xf_vfs_types.h 第 124 行定义.

结构体成员变量说明

flags

int flags

XF_VFS_FLAG_CONTEXT_PTR and/or XF_VFS_FLAG_READONLY_FS or XF_VFS_FLAG_DEFAULT

在文件 xf_vfs_types.h 第 126 行定义.

write_p

xf_vfs_ssize_t(* write_p) (void *p, int fd, const void *data, size_t size)

Write with context pointer

在文件 xf_vfs_types.h 第 128 行定义.

write

xf_vfs_ssize_t(* write) (int fd, const void *data, size_t size)

Write without context pointer

在文件 xf_vfs_types.h 第 129 行定义.

[union]

union { ... }

lseek_p

xf_vfs_off_t(* lseek_p) (void *p, int fd, xf_vfs_off_t size, int mode)

Seek with context pointer

在文件 xf_vfs_types.h 第 132 行定义.

lseek

xf_vfs_off_t(* lseek) (int fd, xf_vfs_off_t size, int mode)

Seek without context pointer

在文件 xf_vfs_types.h 第 133 行定义.

[union]

union { ... }

read_p

xf_vfs_ssize_t(* read_p) (void *ctx, int fd, void *dst, size_t size)

Read with context pointer

在文件 xf_vfs_types.h 第 136 行定义.

read

xf_vfs_ssize_t(* read) (int fd, void *dst, size_t size)

Read without context pointer

在文件 xf_vfs_types.h 第 137 行定义.

[union]

union { ... }

pread_p

xf_vfs_ssize_t(* pread_p) (void *ctx, int fd, void *dst, size_t size, xf_vfs_off_t offset)

pread with context pointer

在文件 xf_vfs_types.h 第 140 行定义.

pread

xf_vfs_ssize_t(* pread) (int fd, void *dst, size_t size, xf_vfs_off_t offset)

pread without context pointer

在文件 xf_vfs_types.h 第 141 行定义.

[union]

union { ... }

pwrite_p

xf_vfs_ssize_t(* pwrite_p) (void *ctx, int fd, const void *src, size_t size, xf_vfs_off_t offset)

pwrite with context pointer

在文件 xf_vfs_types.h 第 144 行定义.

pwrite

xf_vfs_ssize_t(* pwrite) (int fd, const void *src, size_t size, xf_vfs_off_t offset)

pwrite without context pointer

在文件 xf_vfs_types.h 第 145 行定义.

[union]

union { ... }

open_p

int(* open_p) (void *ctx, const char *path, int flags, int mode)

open with context pointer

在文件 xf_vfs_types.h 第 148 行定义.

open

int(* open) (const char *path, int flags, int mode)

open without context pointer

在文件 xf_vfs_types.h 第 149 行定义.

[union]

union { ... }

close_p

int(* close_p) (void *ctx, int fd)

close with context pointer

在文件 xf_vfs_types.h 第 152 行定义.

close

int(* close) (int fd)

close without context pointer

在文件 xf_vfs_types.h 第 153 行定义.

[union]

union { ... }

fstat_p

int(* fstat_p) (void *ctx, int fd, xf_vfs_stat_t *st)

fstat with context pointer

在文件 xf_vfs_types.h 第 156 行定义.

fstat

int(* fstat) (int fd, xf_vfs_stat_t *st)

fstat without context pointer

在文件 xf_vfs_types.h 第 157 行定义.

[union]

union { ... }

stat_p

int(* stat_p) (void *ctx, const char *path, xf_vfs_stat_t *st)

stat with context pointer

在文件 xf_vfs_types.h 第 161 行定义.

stat

int(* stat) (const char *path, xf_vfs_stat_t *st)

stat without context pointer

在文件 xf_vfs_types.h 第 162 行定义.

[union]

union { ... }

link_p

int(* link_p) (void *ctx, const char *n1, const char *n2)

link with context pointer

在文件 xf_vfs_types.h 第 165 行定义.

link

int(* link) (const char *n1, const char *n2)

link without context pointer

在文件 xf_vfs_types.h 第 166 行定义.

[union]

union { ... }

unlink_p

int(* unlink_p) (void *ctx, const char *path)

unlink with context pointer

在文件 xf_vfs_types.h 第 169 行定义.

unlink

int(* unlink) (const char *path)

unlink without context pointer

在文件 xf_vfs_types.h 第 170 行定义.

[union]

union { ... }

rename_p

int(* rename_p) (void *ctx, const char *src, const char *dst)

rename with context pointer

在文件 xf_vfs_types.h 第 173 行定义.

rename

int(* rename) (const char *src, const char *dst)

rename without context pointer

在文件 xf_vfs_types.h 第 174 行定义.

[union]

union { ... }

opendir_p

xf_vfs_dir_t *(* opendir_p) (void *ctx, const char *name)

opendir with context pointer

在文件 xf_vfs_types.h 第 177 行定义.

opendir

xf_vfs_dir_t *(* opendir) (const char *name)

opendir without context pointer

在文件 xf_vfs_types.h 第 178 行定义.

[union]

union { ... }

readdir_p

xf_vfs_dirent_t *(* readdir_p) (void *ctx, xf_vfs_dir_t *pdir)

readdir with context pointer

在文件 xf_vfs_types.h 第 181 行定义.

readdir

xf_vfs_dirent_t *(* readdir) (xf_vfs_dir_t *pdir)

readdir without context pointer

在文件 xf_vfs_types.h 第 182 行定义.

[union]

union { ... }

readdir_r_p

int(* readdir_r_p) (void *ctx, xf_vfs_dir_t *pdir, xf_vfs_dirent_t *entry, xf_vfs_dirent_t **out_dirent)

readdir_r with context pointer

在文件 xf_vfs_types.h 第 185 行定义.

readdir_r

int(* readdir_r) (xf_vfs_dir_t *pdir, xf_vfs_dirent_t *entry, xf_vfs_dirent_t **out_dirent)

readdir_r without context pointer

在文件 xf_vfs_types.h 第 186 行定义.

[union]

union { ... }

telldir_p

long(* telldir_p) (void *ctx, xf_vfs_dir_t *pdir)

telldir with context pointer

在文件 xf_vfs_types.h 第 189 行定义.

telldir

long(* telldir) (xf_vfs_dir_t *pdir)

telldir without context pointer

在文件 xf_vfs_types.h 第 190 行定义.

[union]

union { ... }

seekdir_p

void(* seekdir_p) (void *ctx, xf_vfs_dir_t *pdir, long offset)

seekdir with context pointer

在文件 xf_vfs_types.h 第 193 行定义.

seekdir

void(* seekdir) (xf_vfs_dir_t *pdir, long offset)

seekdir without context pointer

在文件 xf_vfs_types.h 第 194 行定义.

[union]

union { ... }

closedir_p

int(* closedir_p) (void *ctx, xf_vfs_dir_t *pdir)

closedir with context pointer

在文件 xf_vfs_types.h 第 197 行定义.

closedir

int(* closedir) (xf_vfs_dir_t *pdir)

closedir without context pointer

在文件 xf_vfs_types.h 第 198 行定义.

[union]

union { ... }

mkdir_p

int(* mkdir_p) (void *ctx, const char *name, xf_vfs_mode_t mode)

mkdir with context pointer

在文件 xf_vfs_types.h 第 201 行定义.

mkdir

int(* mkdir) (const char *name, xf_vfs_mode_t mode)

mkdir without context pointer

在文件 xf_vfs_types.h 第 202 行定义.

[union]

union { ... }

rmdir_p

int(* rmdir_p) (void *ctx, const char *name)

rmdir with context pointer

在文件 xf_vfs_types.h 第 205 行定义.

rmdir

int(* rmdir) (const char *name)

rmdir without context pointer

在文件 xf_vfs_types.h 第 206 行定义.

[union]

union { ... }

fcntl_p

int(* fcntl_p) (void *ctx, int fd, int cmd, int arg)

fcntl with context pointer

在文件 xf_vfs_types.h 第 210 行定义.

fcntl

int(* fcntl) (int fd, int cmd, int arg)

fcntl without context pointer

在文件 xf_vfs_types.h 第 211 行定义.

[union]

union { ... }

ioctl_p

int(* ioctl_p) (void *ctx, int fd, int cmd, va_list args)

ioctl with context pointer

在文件 xf_vfs_types.h 第 214 行定义.

ioctl

int(* ioctl) (int fd, int cmd, va_list args)

ioctl without context pointer

在文件 xf_vfs_types.h 第 215 行定义.

[union]

union { ... }

fsync_p

int(* fsync_p) (void *ctx, int fd)

fsync with context pointer

在文件 xf_vfs_types.h 第 218 行定义.

fsync

int(* fsync) (int fd)

fsync without context pointer

在文件 xf_vfs_types.h 第 219 行定义.

[union]

union { ... }

access_p

int(* access_p) (void *ctx, const char *path, int amode)

access with context pointer

在文件 xf_vfs_types.h 第 223 行定义.

access

int(* access) (const char *path, int amode)

access without context pointer

在文件 xf_vfs_types.h 第 224 行定义.

[union]

union { ... }

truncate_p

int(* truncate_p) (void *ctx, const char *path, xf_vfs_off_t length)

truncate with context pointer

在文件 xf_vfs_types.h 第 227 行定义.

truncate

int(* truncate) (const char *path, xf_vfs_off_t length)

truncate without context pointer

在文件 xf_vfs_types.h 第 228 行定义.

[union]

union { ... }

ftruncate_p

int(* ftruncate_p) (void *ctx, int fd, xf_vfs_off_t length)

ftruncate with context pointer

在文件 xf_vfs_types.h 第 231 行定义.

ftruncate

int(* ftruncate) (int fd, xf_vfs_off_t length)

ftruncate without context pointer

在文件 xf_vfs_types.h 第 232 行定义.

[union]

union { ... }

utime_p

int(* utime_p) (void *ctx, const char *path, const xf_vfs_utimbuf_t *times)

utime with context pointer

在文件 xf_vfs_types.h 第 235 行定义.

utime

int(* utime) (const char *path, const xf_vfs_utimbuf_t *times)

utime without context pointer

在文件 xf_vfs_types.h 第 236 行定义.

[union]

union { ... }

start_select

xf_err_t(* start_select) (int nfds, xf_fd_set *readfds, xf_fd_set *writefds, xf_fd_set *exceptfds, xf_vfs_select_sem_t sem, void **end_select_args)

start_select is called for setting up synchronous I/O multiplexing of the desired file descriptors in the given VFS

在文件 xf_vfs_types.h 第 241 行定义.

socket_select

int(* socket_select) (int nfds, xf_fd_set *readfds, xf_fd_set *writefds, xf_fd_set *errorfds, xf_vfs_timeval_t *timeout)

socket select function for socket FDs with the functionality of POSIX select(); this should be set only for the socket VFS

在文件 xf_vfs_types.h 第 243 行定义.

stop_socket_select

void(* stop_socket_select) (void *sem)

called by VFS to interrupt the socket_select call when select is activated from a non-socket VFS driver; set only for the socket driver

在文件 xf_vfs_types.h 第 245 行定义.

stop_socket_select_isr

void(* stop_socket_select_isr) (void *sem, int *woken)

stop_socket_select which can be called from ISR; set only for the socket driver

在文件 xf_vfs_types.h 第 247 行定义.

get_socket_select_semaphore

void *(* get_socket_select_semaphore) (void)

end_select is called to stop the I/O multiplexing and deinitialize the environment created by start_select for the given VFS

在文件 xf_vfs_types.h 第 249 行定义.

end_select

xf_err_t(* end_select) (void *end_select_args)

get_socket_select_semaphore returns semaphore allocated in the socket driver; set only for the socket driver

在文件 xf_vfs_types.h 第 251 行定义.

---

该结构体的文档由以下文件生成:

• components/xf_vfs/xf_vfs/src/xf_vfs_types.h
