#include "xf_utils.h"
#include "xf_osal.h"
#include "xf_netif.h"

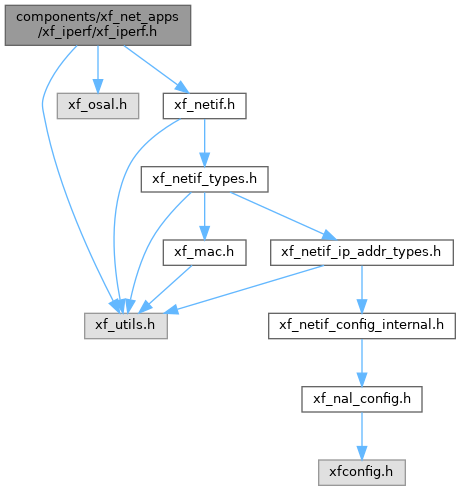

xf_iperf.h 的引用(Include)关系图:

宏定义
#define	IPERF_IP_TYPE_IPV4 0

#define	IPERF_IP_TYPE_IPV6 1

#define	IPERF_TRANS_TYPE_TCP 0

#define	IPERF_TRANS_TYPE_UDP 1

#define	IPERF_FLAG_SET(cfg, flag) ((cfg) \|= (flag))

#define	IPERF_FLAG_CLR(cfg, flag) ((cfg) &= (~(flag)))

#define	IPERF_FLAG_CLIENT (1)

#define	IPERF_FLAG_SERVER (1 << 1)

#define	IPERF_FLAG_TCP (1 << 2)

#define	IPERF_FLAG_UDP (1 << 3)

#define	IPERF_DEFAULT_PORT 5001

#define	IPERF_DEFAULT_INTERVAL 1

#define	IPERF_DEFAULT_TIME 30

#define	IPERF_DEFAULT_NO_BW_LIMIT -1

#define	IPERF_TRAFFIC_TASK_NAME "iperf_traffic"

#define	IPERF_TRAFFIC_TASK_PRIORITY XF_OSAL_PRIORITY_NORMOL

#define	IPERF_TRAFFIC_TASK_STACK 4096

#define	IPERF_REPORT_TASK_NAME "iperf_report"

#define	IPERF_REPORT_TASK_PRIORITY XF_OSAL_PRIORITY_NORMOL

#define	IPERF_REPORT_TASK_STACK 4096

#define	IPERF_DEFAULT_IPV4_UDP_TX_LEN (1470)

#define	IPERF_DEFAULT_IPV6_UDP_TX_LEN (1450)

#define	IPERF_DEFAULT_UDP_RX_LEN (16 << 10)

#define	IPERF_DEFAULT_TCP_TX_LEN (16 << 10)

#define	IPERF_DEFAULT_TCP_RX_LEN (16 << 10)

#define	IPERF_MAX_DELAY 64

#define	IPERF_SOCKET_RX_TIMEOUT_MS 3000

#define	XF_IPERF_DEFAULT_CONFIG()
	默认 iperf 配置

类型定义
typedef struct _xf_iperf_ctx_t *	xf_iperf_t
	iperf 句柄。

typedef enum _xf_iperf_event_code_t	xf_iperf_event_code_t
	iperf 事件声明。

typedef int32_t	xf_iperf_event_id_t
	iperf 事件 id。见 xf_iperf_event_code_t.

typedef void(*	xf_iperf_cb_t) (xf_iperf_event_id_t event_id, xf_iperf_t hdl, void *user_args)
	iperf 回调函数原型。

typedef struct _xf_iperf_cfg_t	xf_iperf_cfg_t
	iperf 配置类型。

typedef struct _xf_iperf_ctx_t	xf_iperf_ctx_t
	iperf 上下文.

枚举
enum	_xf_iperf_event_code_t { XF_IPERF_EVENT_START = 0x00 , XF_IPERF_EVENT_REPORT , XF_IPERF_EVENT_END , XF_IPERF_EVENT_MAX }
	iperf 事件声明。更多...

函数
xf_err_t	xf_iperf_start (const xf_iperf_cfg_t p_cfg, xf_iperf_cb_t cb_func, void user_args)
	启动 iperf.

xf_iperf_t	xf_iperf_get_handle (void)
	获取 iperf 句柄。

bool	xf_iperf_is_running (void)
	检查 iperf 是否正在运行。

xf_err_t	xf_iperf_stop (void)
	停止 iperf.

详细描述

在文件 xf_iperf.h 中定义.

结构体
